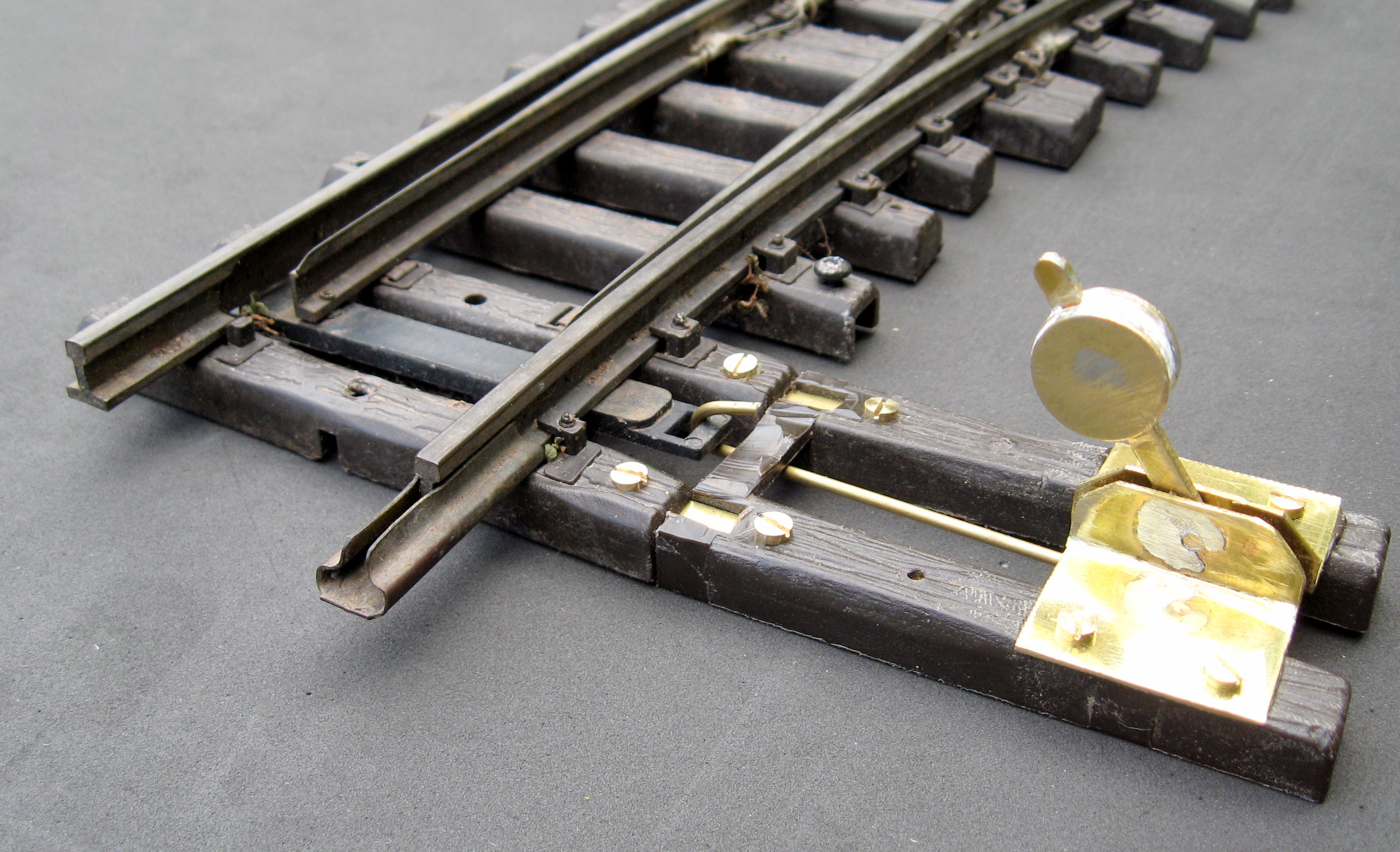

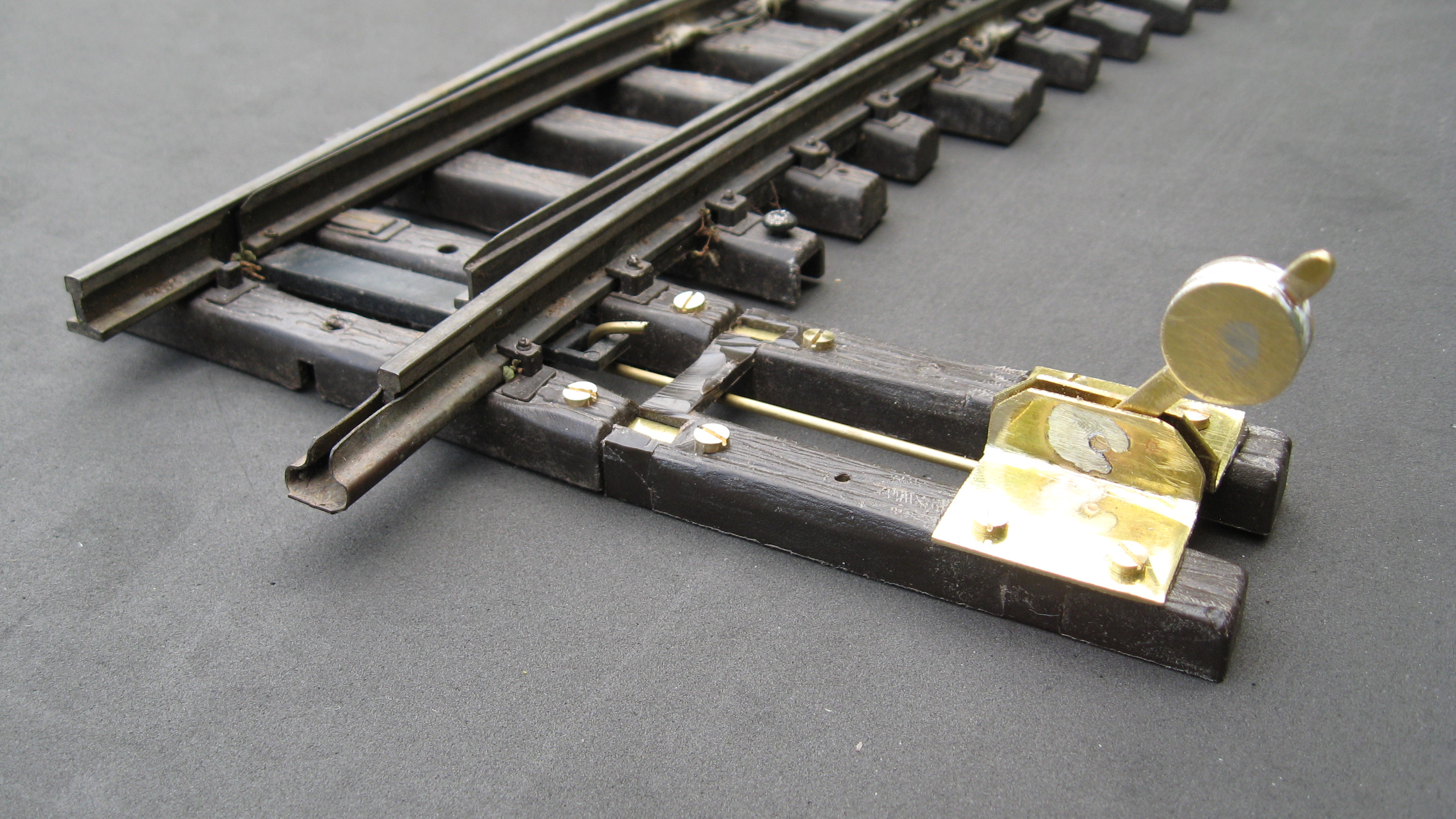

My latest project is to replace my LGB manual point levers with something which looks a bit more realistic. A few bits of brass and a couple of redundant sleepers from a sleeper-strip.




I've blogged the process in case anyone wants to have a go
https://riksrailway.blogspot.com/2021/0 ... evers.html

Rik

[Peter Butler]

Very neat job Rik. I'm guessing the blades are not sprung but there seems to be enough weight to hold them in place whilst allowing trains to trail through without derailing?

[ge_rik]

Very neat job Rik. I'm guessing the blades are not sprung but there seems to be enough weight to hold them in place whilst allowing trains to trail through without derailing?

Yes, unsprung. In fact, trailing through switches the blades to the other direction. No doubt, by shifting the positions of the pivot holes in the lever and the plate, it could be made to spring back ...... sounds like a bit more experimentation might be on the cards ......

Rik

[Soar Valley Light]

Very nice Rik - and very realistic too.

SVLR Andrew

[Old Man Aaron]

Simple and effective - that screams "narrow gauge".

[GAP]

Looks real good there Rik would be a good addition to my handmade points.
Consider the idea pinched

[ge_rik]

Looks real good there Rik would be a good addition to my handmade points.
Consider the idea pinched

Rik

[ge_rik]

Simple and effective - that screams "narrow gauge".

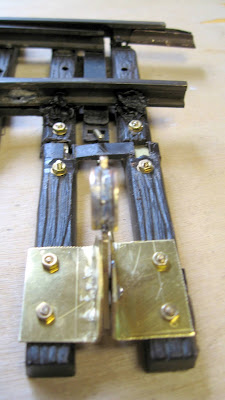

I've modified the construction slightly. My thinking is that inverting the bolts puts the nuts on top which look a bit more realistic than the cheese heads.


Rik

[GAP]

Rik
While procrastinating more over a 3D printer purchase I came across this on the net.
https://www.myminifactory.com/object/3d ... stem-35454

He also has a set of points which could be useful for indoors.
https://www.myminifactory.com/object/3d ... stem-35459
https://www.thingiverse.com/thing:976643

[philipy]

Graeme,
"arockstone" is a quite well known SM32/G Scale designer/contributer on Thingiverse, with a range of wagons and track components. Both Rik and I ( and others) have printed versions of his little diesel loco.

[ge_rik]

Rik
While procrastinating more over a 3D printer purchase I came across this on the net.
https://www.myminifactory.com/object/3d ... stem-35454

He also has a set of points which could be useful for indoors.
https://www.myminifactory.com/object/3d ... stem-35459
https://www.thingiverse.com/thing:976643

Somewhere (possibly Thingiverse), I came across 3d drawings of a double slip in 45mm gauge. I might give it a try sometime.

Rik
