Fitted a lubricator

Post by Boustrophedon » Tue Aug 25, 2015 10:59 pm

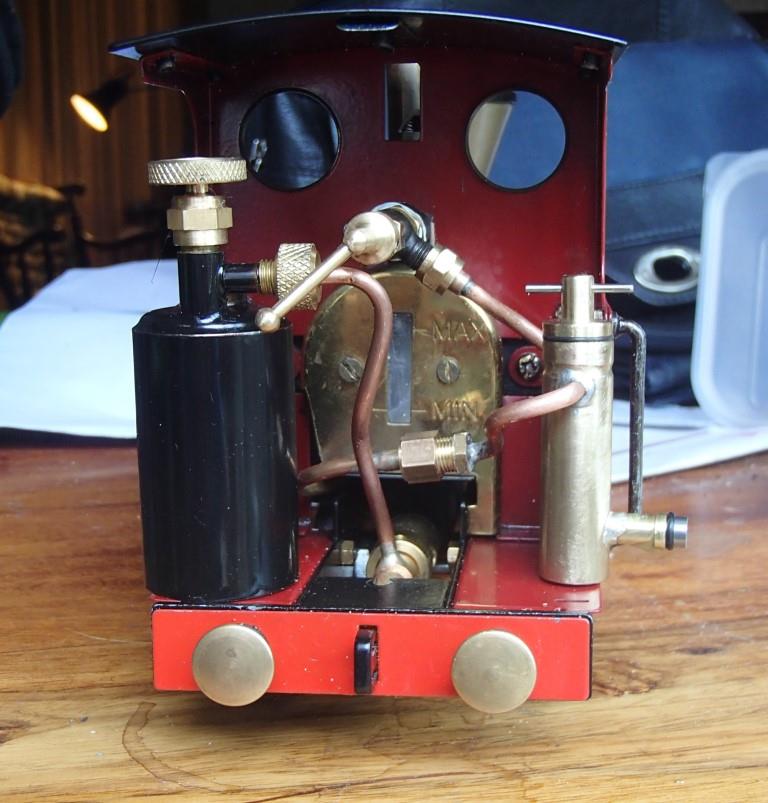

I made a lubricator for my Mamod, it had been fitted with an in cab regulator but that left no provision for proper cylinder lubrication. So I built a simple displacement lubricator out of brass. I am surprised at the  difference it has made, the loco is now much more controllable, uses less steam and water so runs for longer.

OK so it is not the prettiest of installations, bending the tube was a nightmare. But it works.

(Edited for speeling)
Last edited by Boustrophedon on Wed Aug 26, 2015 10:23 am, edited 2 times in total.
Top
daveyrd11

Post by daveyrd11 » Tue Aug 25, 2015 11:05 pm

I am very impressed, how did you go about making it?
Top
User avatar
Boustrophedon
Trainee Fireman
Trainee Fireman
Posts: 241
Joined: Wed May 22, 2013 7:43 pm

Post by Boustrophedon » Wed Aug 26, 2015 10:22 am

Turned the bits out of brass on the lathe and soldered them together.
Top
daveyrd11

Post by daveyrd11 » Wed Aug 26, 2015 11:22 am

Oh, it looks very professional.
I don't have a lathe :-(
