Penrhyn Quarry Workers Coach

WVLR · Post by **WVLR** » Thu Sep 19, 2013 10:03 am

Here's some more rolling stock that I built last week after being invited to an open day .

I decided that my Penrhyn train was too short and needed a couple more of the workers
coaches to go along with the saloon coach and the brake van that I'd already made.

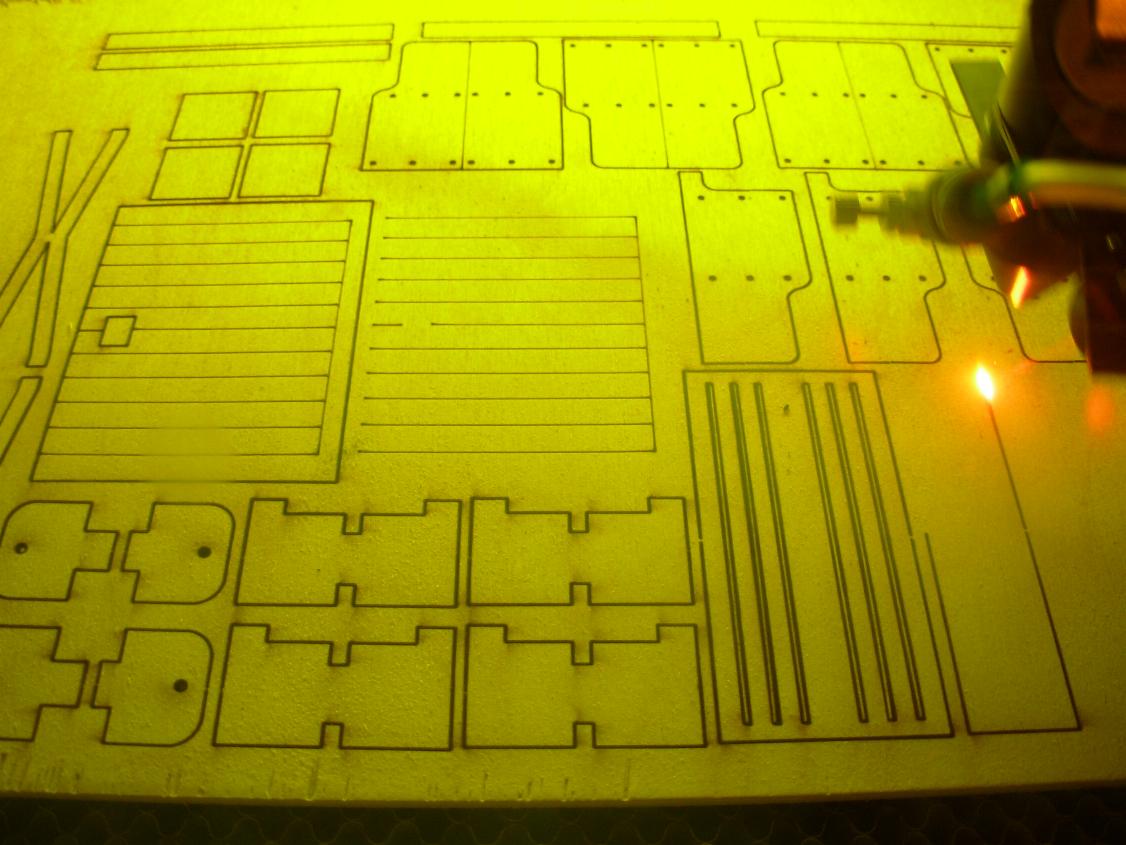

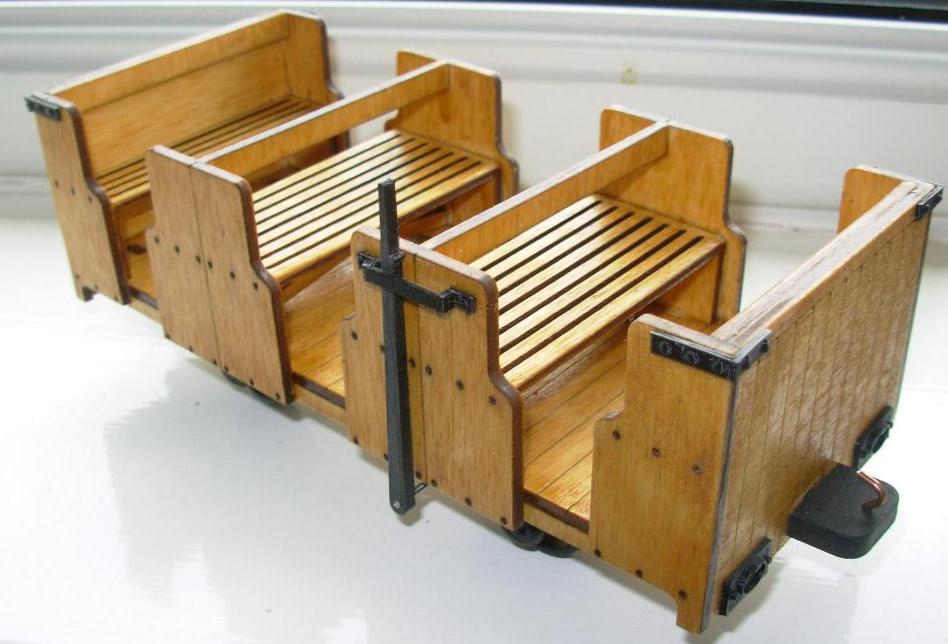

Made from 3mm laser cut ply with 3D printed detail and using Busted Bricks

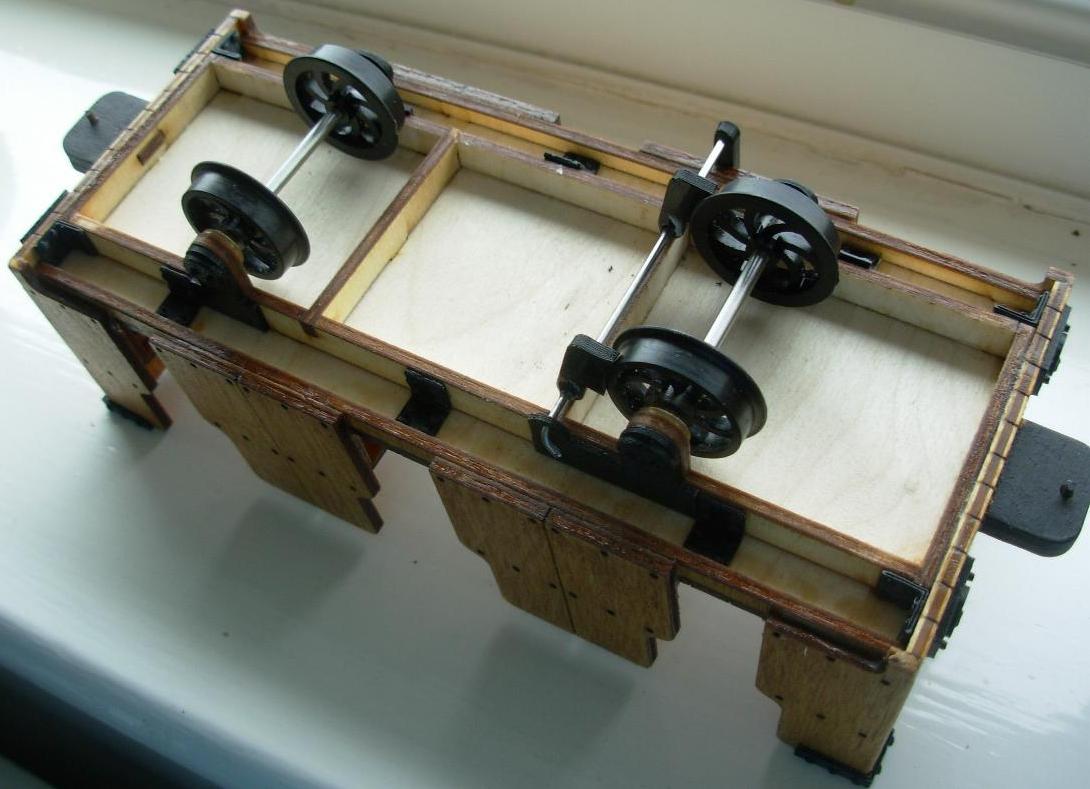

bearings with Binnie wheels and axles.

MDLR · Post by **MDLR** » Thu Sep 19, 2013 5:44 pm

Very nice!

LnBmad · Post by **LnBmad** » Thu Sep 19, 2013 6:04 pm

They look cracking mike! Have you got a shot of them behind Charles yet?

WVLR · Post by **WVLR** » Thu Sep 19, 2013 6:12 pm

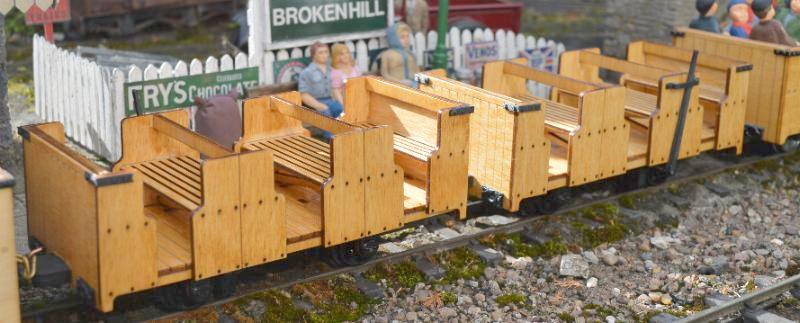

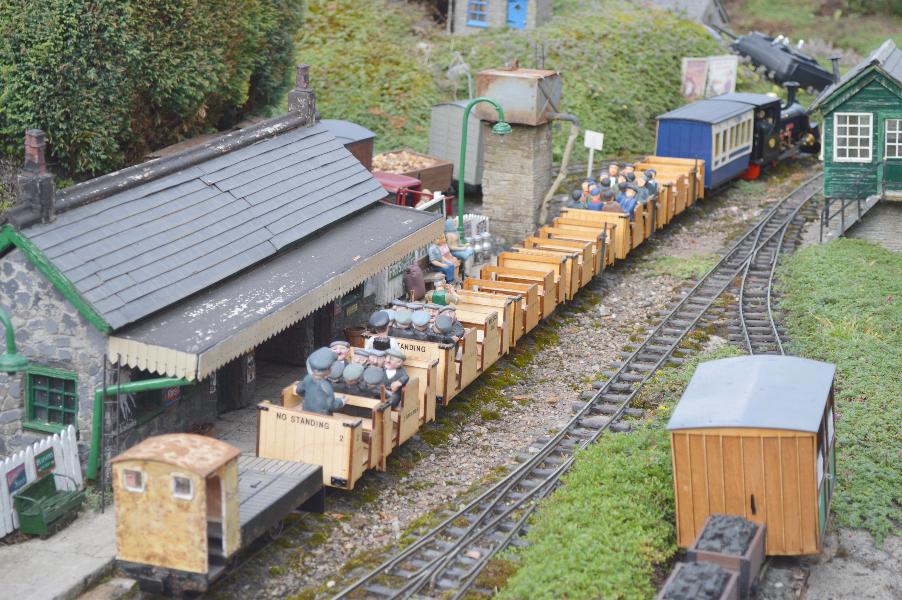

Thanks folks, as requested, sorry about the full size R/C transmitter in the background.

Mine are the 2 in the middle sandwiched between 4 IP ones.

pauly · Post by **pauly** » Thu Sep 19, 2013 7:13 pm

WVLR:89071 wrote:Thanks folks, as requested, sorry about the full size R/C transmitter in the background.

Mine are the 2 in the middle sandwiched between 4 IP ones.

Love the Brakevan, wish it was modelled more mate

Also is that RC transmitter in the background to scale

WVLR · Post by **WVLR** » Thu Sep 19, 2013 7:31 pm

Also is that RC transmitter in the background to scale

No it's 12" to the foot scale

Blame the Bloke behind the camera

, Me.

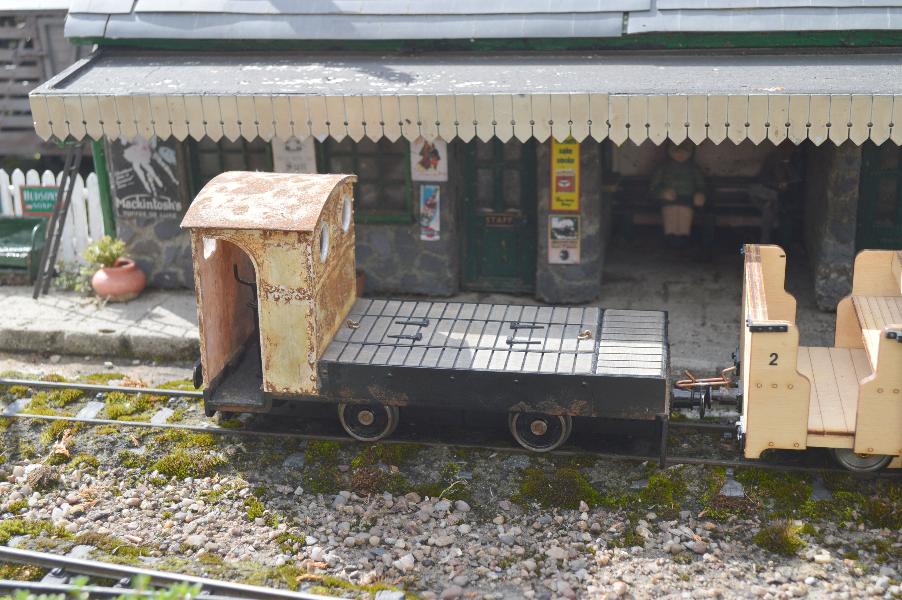

Love the Brakevan, wish it was modelled more mate

Thanks, I'm thinking of producing it as a kit, the problem is it's very
fiddly to make, bending plastic angle etc. I don't want to make it simpler
as then it wouldn't be Sanford.

pauly · Post by **pauly** » Thu Sep 19, 2013 7:35 pm

WVLR:89075 wrote:
Also is that RC transmitter in the background to scale
No it's 12" to the foot scale Blame the Bloke behind the camera , Me.

Love the Brakevan, wish it was modelled more mate

Thanks, I'm thinking of producing it as a kit, the problem is it's very
fiddly to make, bending plastic angle etc. I don't want to make it simpler
as then it wouldn't be Sanford.

I thought the weight was a riveter water tanks but on your model it looks like a large wooden structure, modellers licence or am I just incorrect

METHSSNIFFER · Post by **METHSSNIFFER** » Thu Sep 19, 2013 7:40 pm

When you shipping these kits out.

WVLR · Post by **WVLR** » Thu Sep 19, 2013 7:41 pm

There was 3 versions, 2 with the water tank and the third with a low steel box filled with scrap iron
and concrete, this is the version that I modeled here, also the wheel base was extended on this version
to make it more stable, the same reason that the water ballast tank was taken off.

I may yet do a model of one of the previous versions.

WVLR · Post by **WVLR** » Thu Sep 19, 2013 7:46 pm

When you shipping these kits out.

Sorry no idea as yet as it will be very difficult to produce and work out a cost for them.

BTW apart from the obvious bits like wheels, axles, bearings and the deck. its made from plastikard.

METHSSNIFFER · Post by **METHSSNIFFER** » Thu Sep 19, 2013 7:52 pm

Could it not be produced in ply. I need a lesson in 3D cad now Ive got a programme

WVLR · Post by **WVLR** » Thu Sep 19, 2013 8:01 pm

Could it not be produced in ply

If it were just an ordinary piece of rolling stock then yes, but the prototype is based on a locomotive so using 3mm ply
it would look to chunky and thinner ply just wouldn't be rigid enough. The plastic worked very well,
I used 2mm for the chassis, 1.5mm for the body and 1mm for the roof, I even managed to mill the
hockey stick detail around the door from 1mm, very fiddly to do, maybe more of a commision piece than a kit.

METHSSNIFFER · Post by **METHSSNIFFER** » Thu Sep 19, 2013 8:05 pm

It gives me an idea for an old mamod cab

Peter Butler · Post by **Peter Butler** » Thu Sep 19, 2013 10:56 pm

[quote="WVLR:89044"]Here's some more rolling stock that I built last week after being invited to an open day .

I'm no expert on these matters but I think you have captured the look of these vehicles better than I have seen before.
Well done you!

11thHour · Post by **11thHour** » Fri Sep 20, 2013 1:08 am

I'm no expert on these matters but I think you have captured the look of these vehicles better than I have seen before.
Well done you!

Is that oak stain making it look so good? Did you have some technique on the staining or just luck?

Tim

WVLR · Post by **WVLR** » Fri Sep 20, 2013 9:43 am

Did you have some technique on the staining or just luck?

It's Radcliffs light oak scumble mixed with white spirit and linseed oil
then applied directly to the wood. Finished off with a coat of varnish.

TTHLRMatt · Post by **TTHLRMatt** » Fri Sep 20, 2013 4:47 pm

Hi, do you have a laser cutter of your own and may I ask how much it costed and what program you use?

WVLR · Post by **WVLR** » Fri Sep 20, 2013 9:46 pm

Hi, do you have a laser cutter of your own and may I ask how much it costed and what program you use?

Yes I have my own laser cutter, the CAD program I use for it is vcarve pro from Vectric, although not specifically designed for doing this type of job it performs better and is easier to use than a lot of the more expensive cad programs, also being one of the official beta testers for it I am very experienced in using it.

METHSSNIFFER · Post by **METHSSNIFFER** » Fri Sep 20, 2013 10:17 pm

11thHour:89180 wrote:
I'm no expert on these matters but I think you have captured the look of these vehicles better than I have seen before.
Well done you!
Is that oak stain making it look so good? Did you have some technique on the staining or just luck?

Tim

I'm really surprised that someone doesn't know how to stain wood and there is a special technique ...follow the grain

MDLR · Post by **MDLR** » Fri Sep 20, 2013 10:19 pm

................. and use a soft rag, rather than a brush.
