The Railway in the Valley of the Mill

[ge_rik]

.....The files for the fencing will be in the 3 D printing section shortly.
Trevor

That'll be handy. I noticed on my latest video that the fencing behind the platform at Peckforton is looking decidedly sorry for itself.

Rik

[Tropic Blunder]

Looking great Trevor I love to see the buildings and fences it makes it look lived in and not just a railway on a hill, Bravo!

[Trevor Thompson]

I do love your 3D printed buildings, Trevor.
I wish I had the courage to try ABS printing but my past experience has been unsuccessful.

Rik

The enclosed printer is the key. The Bambu Labs P1S is the best I have had.

Trevor

[Old Man Aaron]

Looks phenomenal, Trevor.

I just hope the red point sleepers don't show up if/when the ballast chips/wears..

[nlc1072]

The station building is now finished and installed on the railway:


The goods shed is temporarily in place to mark its footprint in the station area. All three buildings are set in dry mortar and levelled. I am looking for a damp night tonight. and from the other end:


I made the tunnel yesterday, and you can see the its mouth in the distance. The tunnel is made from old bricks, with paving slabs for a roof. I am going to hide the bricks by cladding the entrances with stonework , and extending that to edge the cutting each side of the trackbed.

Finally a low level photo which shows some of the detail:


The adverts were printed onto self adhesive photographic paper, mounted on a printed backing, and varnished. Just need some customers to occupy the seats under the veranda.

Trevor

I know it's a while back, but do you have any photos or talks on how you designed and built these station buildings? They're quite incredible.

[Trevor Thompson]

The station building is now finished and installed on the railway:


The goods shed is temporarily in place to mark its footprint in the station area. All three buildings are set in dry mortar and levelled. I am looking for a damp night tonight. and from the other end:


I made the tunnel yesterday, and you can see the its mouth in the distance. The tunnel is made from old bricks, with paving slabs for a roof. I am going to hide the bricks by cladding the entrances with stonework , and extending that to edge the cutting each side of the trackbed.

Finally a low level photo which shows some of the detail:


The adverts were printed onto self adhesive photographic paper, mounted on a printed backing, and varnished. Just need some customers to occupy the seats under the veranda.

Trevor

I know it's a while back, but do you have any photos or talks on how you designed and built these station buildings? They're quite incredible.

Sorry to take so long to respond to this. I haven't been on the forum for a while.

I don't really know what I can show you to answer your question about the buildings. I think I have put quite a lot onto the forum about them already - and I don't want to bore everyone by going into copious detail.

At least I can say that things have moved on even in the last 12 months. A new computer has enabled me to use Autocad Fusion, instead of Sketchup to design the buildings. It still involves finding a plan for the original building and inputing it into the CAD software so I can trace it. Because it has to be built in pieces (maximum print size is 250 x 250 mm) the design has to be done with that in mind. In the end it still comes down to laboriously drawing stonework onto the surfaces and then "pulling" the stones out 1mm from the surface - to create the appearance of stonework.

Then it is a matter of printing each component and glueing them together as they are printed. That can take weeks for the bigger buildings. It all seems a bit extreme - and I don't suppose any one else is likely to follow my lead in making these large buildings!

Trevor

[Trevor Thompson]

Looks phenomenal, Trevor.

I just hope the red point sleepers don't show up if/when the ballast chips/wears..

I also hope that they don't become visible. Really I should have waited until I had a new supply of black filament - but in a hurry as usual!

Trevor

[Trevor Thompson]

My latest building.

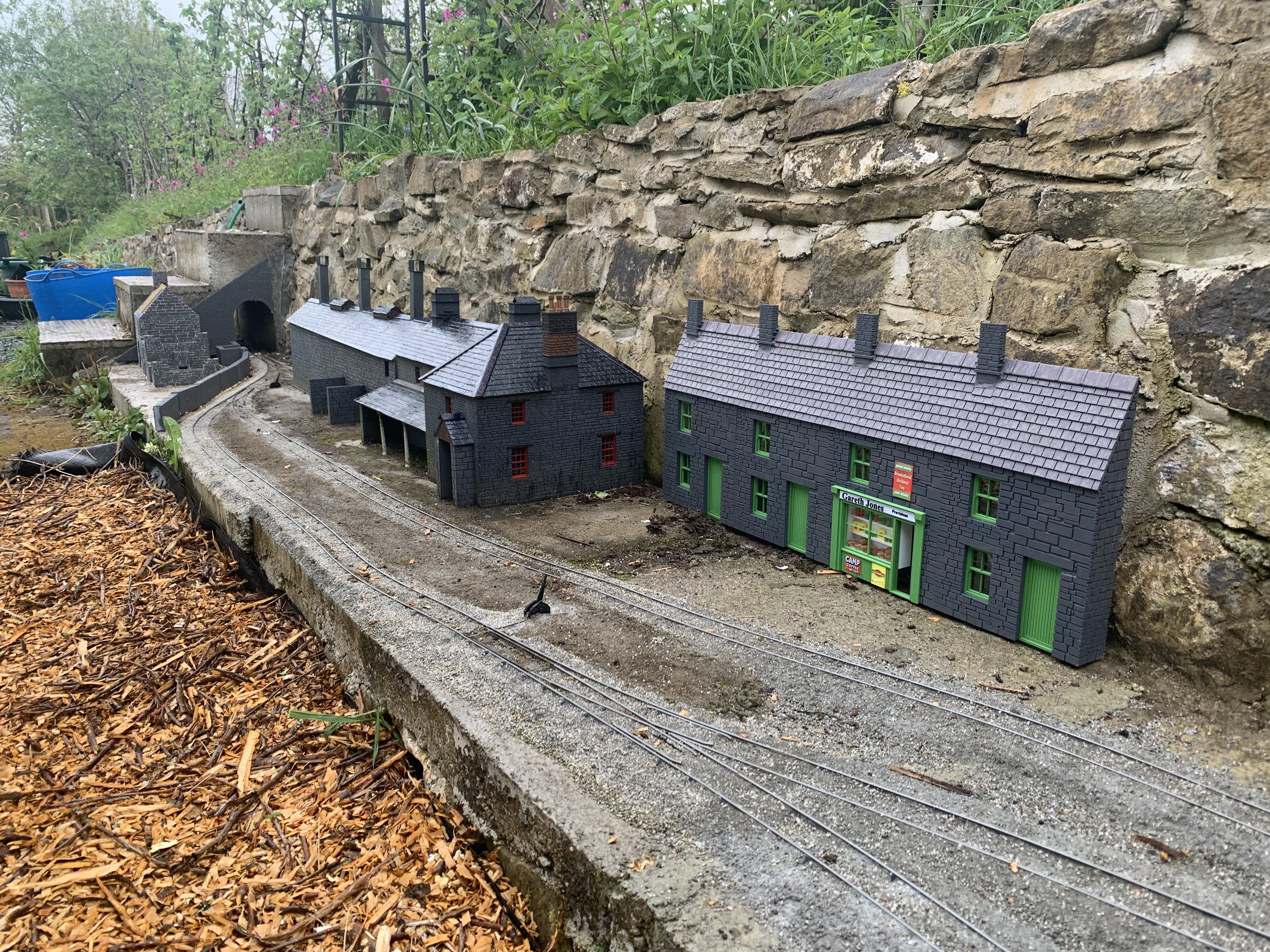

A row of 4 low relief cottages, one of which is a shop, in site temporarily at "Dinas":

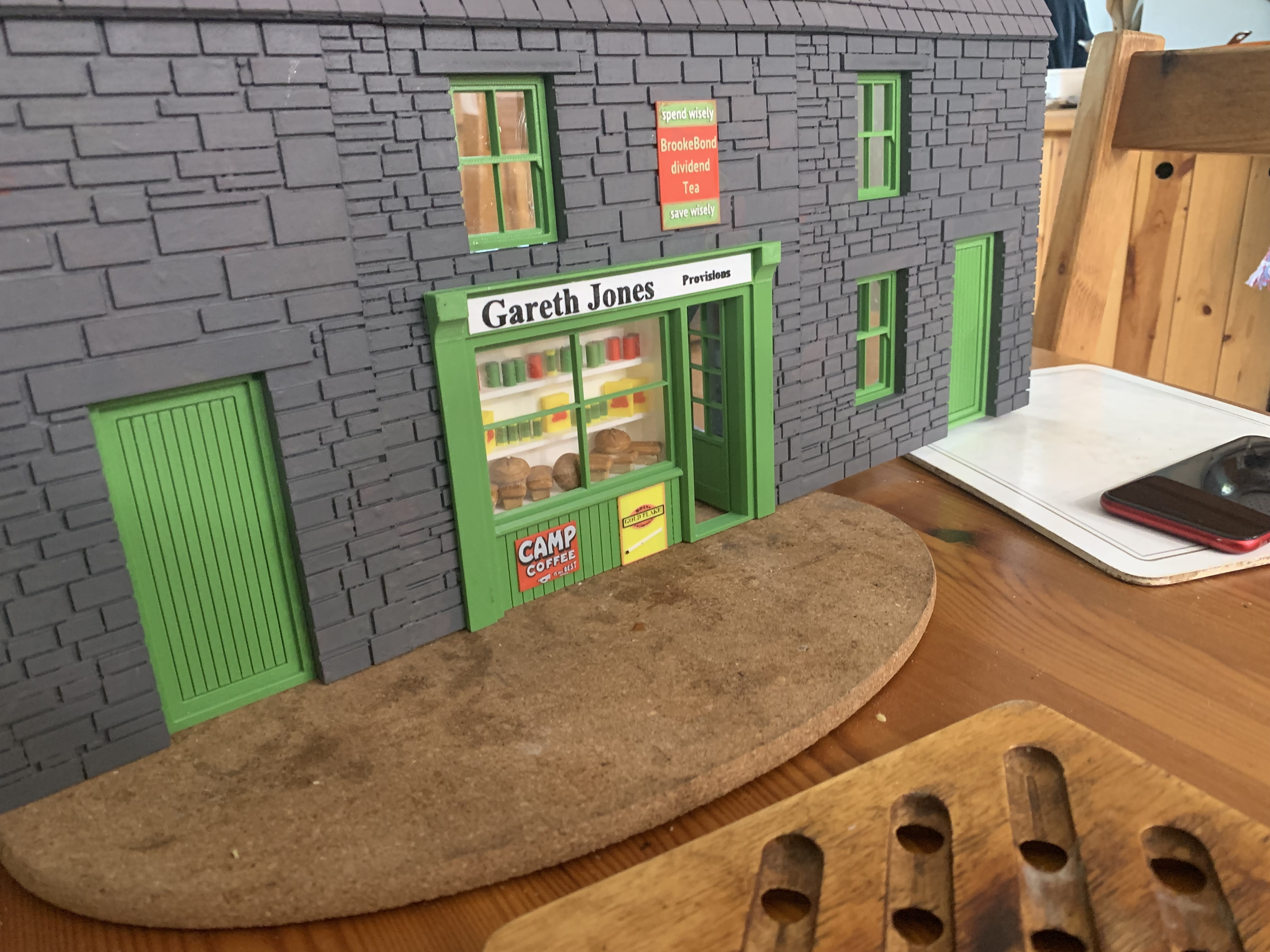

and a close up of the shop:


The shop door is open and I intend to place the shopkeeper ("ai" generated from a historic photo) in the doorway permanently.

Trevor

[philipy]

wow, that is a surprise! No wonder we haven't seen anything from you for a while, but its worth the wait. The shop terrace is a masterpiece.

[ge_rik]

Are the loaves and cans 3D printed as well? The loaves look good enough to eat!

Rik

[IRON MAN]

Have been following your thread for a while. Dinas is looking brilliant, I do like how the trackwork uses the space.

Kind regards

Dan J

[Phil.P]

Does Mr Jones do Bara Brith?

My usual supply, is no more.

Phil.P
