Page 10 of 15
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 8:01 am
by LNR

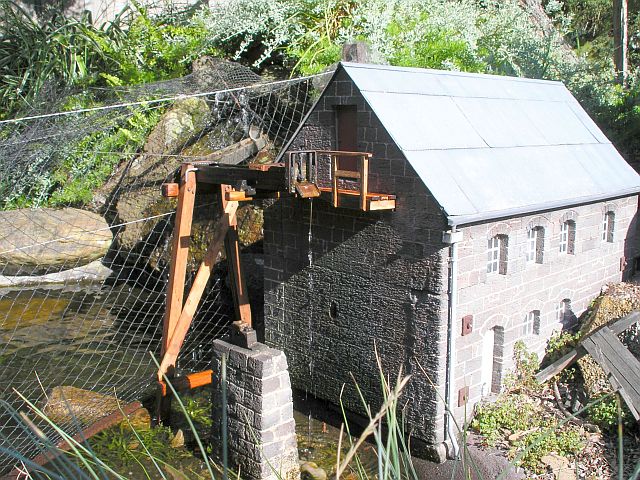

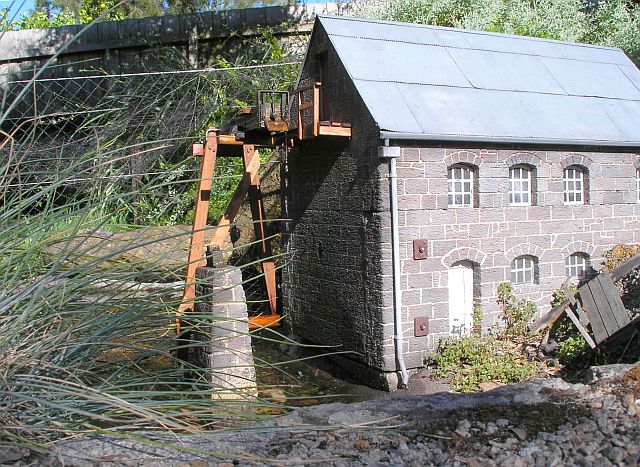

Dan has known for a while that every time he stepped out onto the catwalk to adjust the sluice gate, one day he would end up in the wheel or in the lake!
The timbers were well past their use by date.
As the wheel needed a complete replacement, the opportunity was taken to renew the associated timber work with new Merbau which should see Dan out.
![Mill Repairs 1.JPG](./download/file.php?id=2723&sid=4844bc459f184da8608fed6e2e4f0919)
- Mill Repairs 1.JPG (127.2 KiB) Viewed 7685 times
![Mill Repairs 2.JPG](./download/file.php?id=2724&sid=4844bc459f184da8608fed6e2e4f0919)
- Mill Repairs 2.JPG (133.03 KiB) Viewed 7685 times
As for the wheel, don't know where we are going with that, probably end up building again from scratch. Still investigating!
Grant.
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 8:25 am
by tom_tom_go
Just thought were there ever metal water wheels?
You could use a rim from a small push chair or child's bicycle?
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 9:19 am
by LNR
They certainly did have iron wheels Tom, I was wondering about a centrifugal or squirrel cage fan as looking more prototypical.
A wooden wheel looks good, wondering about using the outer part of a plastic MIG welding wire spool, there's one 300mm diam. which is the size I need. Thinking.
Grant.
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 9:46 am
by Peter Butler
I can't recall seeing that building before Grant, the stone effect is just wonderful.... how is it built?
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 11:42 am
by LNR
The Mill building sits just to the left of the water tank at Nayook Peter. I built it using Hebel blocks (Autoclaved Aerated Concrete ) 100mm thick sawed down the middle to give me 50mm wall thickness, painted "bluestone" colours then scratched in the mortar joints. Milled out window and door recesses with Acrylic windows and timber doors.

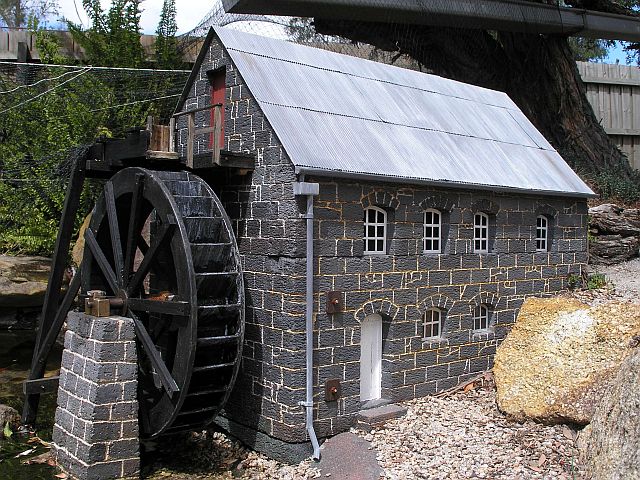

It normally looks like this with the wheel fed by a sluice box that re-directs water from the waterfall on the hill behind it.
![Railway Scenes 130.jpg](./download/file.php?id=2729&sid=4844bc459f184da8608fed6e2e4f0919)
- Railway Scenes 130.jpg (130.56 KiB) Viewed 7663 times
Timber framed roof, galv. iron nailed on then covered with my own corrugated iron sheeting.
Grant.
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 12:13 pm
by ge_rik
LNR wrote: ↑Tue Jan 23, 2018 9:20 am
That being said Rik, and with Peters recent discussion in "Off Topic" have you ever wondered where all your railway equipment will end up when the time comes for you to stop using it (if you get my drift). I hope my Son won't chuck mine in the bin, I'll come back and haunt him if he does!.
Grant.
Funny you should say that, Grant. I've been considering for a while leaving instructions for my wife and/or daughter with contact details of a couple of younger fellow modellers whom I could trust to dispose of my collection reliably and thoughtfully. Maybe I ought to sort that out before I depart for India!
Unlike Peter's magnificent Emett models, I don't think there will be any collectors, museums or societies who'd welcome my stuff.
Rik
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 12:24 pm
by philipy
ge_rik wrote: ↑Fri Feb 02, 2018 12:13 pm
I don't think there will be any collectors, museums or societies who'd welcome my stuff.
Not sure about museums, but I'm pretty sure there are plenty of fellow modellers who would jump at the chance of acquiring your building, Rik. Of course we all hope that chance won't be for many years to come!!
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 12:38 pm
by ge_rik
LNR wrote: ↑Fri Feb 02, 2018 11:42 am
The Mill building sits just to the left of the water tank at Nayook Peter. I built it using Hebel blocks (Autoclaved Aerated Concrete ) 100mm thick sawed down the middle to give me 50mm wall thickness, painted "bluestone" colours then scratched in the mortar joints. Milled out window and door recesses with Acrylic windows and timber doors.
It normally looks like this with the wheel fed by a sluice box that re-directs water from the waterfall on the hill behind it.
Timber framed roof, galv. iron nailed on then covered with my own corrugated iron sheeting.
Grant.
Wonderful looking model Grant. Love all the details such as the downspout and the reinforcement bolt heads.
What material did you use for your corrugated iron? It looks very good.
Rik
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 12:45 pm
by ge_rik
philipy wrote: ↑Fri Feb 02, 2018 12:24 pm
Not sure about museums, but I'm pretty sure there are plenty of fellow modellers who would jump at the chance of acquiring your building, Rik. Of course we all hope that chance won't be for many years to come!!
Thanks Philip. I'm hoping I reach the age where I can no longer totter out into the garden and so have to hand things on and see them in action on other people's railways.
Rik
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 1:06 pm
by LNR
Aluminium beer cans Rik. (18-20 of them) cut annealed and corrugated. Wouldn't do it again, that's why I get the aluminium sheet rolls from a craft store.
Also saves the Pong going through the house during annealing, from burning what ever it is in the coating on beer cans. I have a pet hate (hope I'm not treading on anyone's toes ) of corrugated roofs on models done with individual sheets. If you look at an iron roof, you can't see the vertical sheet joins, only the horizontal ones. I roll the sheets as long as the ally comes to have less joins.
Grant.
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 1:39 pm
by tom_tom_go
Being younger than most of you feel free to leave stuff to me as it will get used and not sold
![:thumbup: :thumbup:](./images/smilies/thumbsup.gif)
Re: A Quiet Sunday
Posted: Fri Feb 02, 2018 4:15 pm
by Peter Butler
Interesting that this subject should crop up again. At our weekly Club breakfast meeting today I asked whether any of those present had made arrangements for disposal of their models, despite all being as old, or older than me, none had.
Re: A Quiet Sunday
Posted: Sat Feb 17, 2018 2:21 am
by LNR

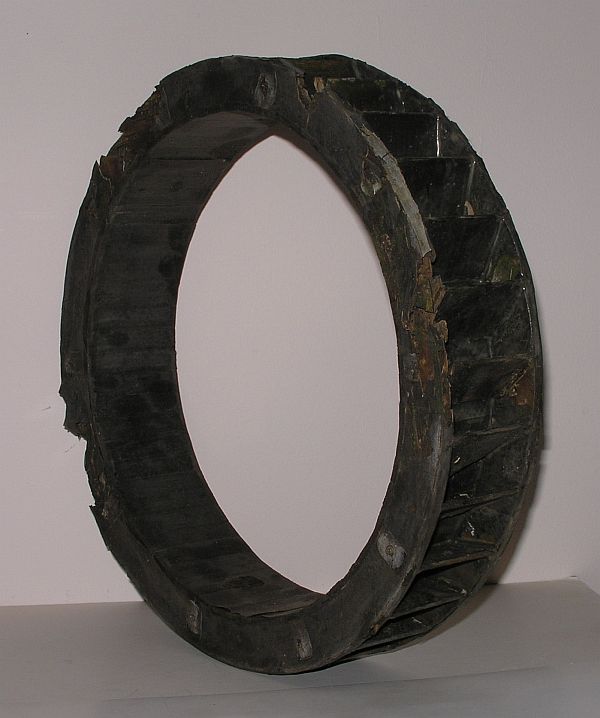

After 8 years and three months, and not using marine ply, this is what the old millwheel looked like.
![New Mill Wheel 4.JPG](./download/file.php?id=2801&sid=4844bc459f184da8608fed6e2e4f0919)
- New Mill Wheel 4.JPG (57.8 KiB) Viewed 7432 times
It still worked, but for how much longer! The spokes and hubs were useable although I chose to make new ones fixing
them to the wheel in a different way so as not to have holes in the marine ply rims. The cedar belly and paddle planks
were all as sound as the day it was built.
![New Mill Wheel 1.JPG](./download/file.php?id=2802&sid=4844bc459f184da8608fed6e2e4f0919)
- New Mill Wheel 1.JPG (65.9 KiB) Viewed 7432 times
![New Mill Wheel 2.JPG](./download/file.php?id=2803&sid=4844bc459f184da8608fed6e2e4f0919)
- New Mill Wheel 2.JPG (37.82 KiB) Viewed 7432 times

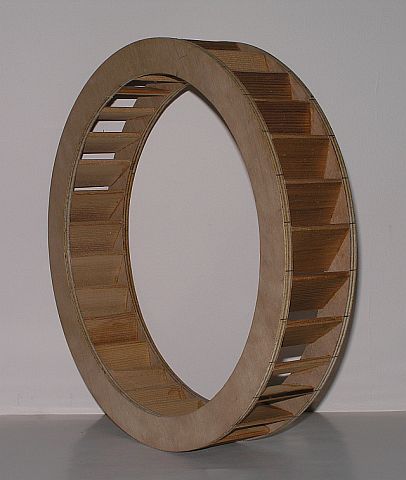

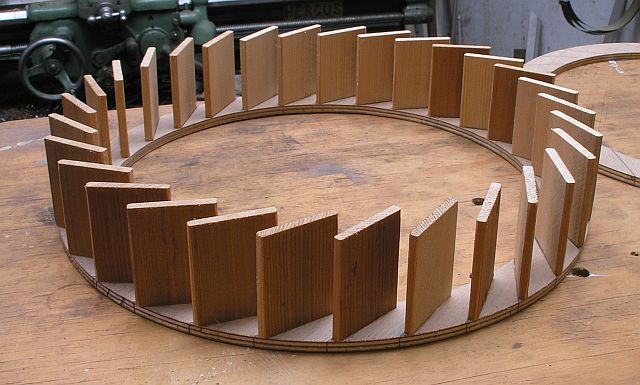

The wheel under construction. This wheel should be more powerful as it will hold more water before spilling it at the bottom.
![New Mill Wheel 3.JPG](./download/file.php?id=2804&sid=4844bc459f184da8608fed6e2e4f0919)
- New Mill Wheel 3.JPG (78.84 KiB) Viewed 7432 times

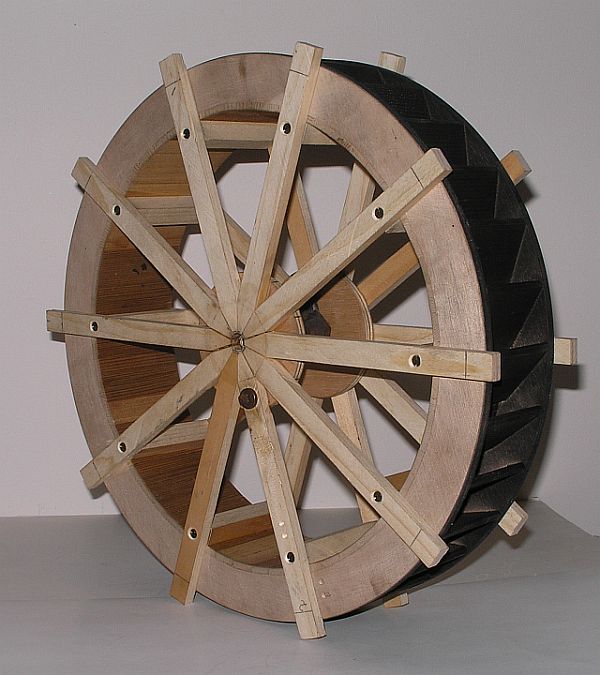

Just got to cut the spokes to length, tidy up some steel work, and give the wheel three coats of resin, and Dan should
have his new wheel delivered soon.
Grant.
Re: A Quiet Sunday
Posted: Sat Feb 17, 2018 8:28 am
by tom_tom_go
Seems a shame to put it outside Grant, great work.
Re: A Quiet Sunday
Posted: Sat Feb 17, 2018 9:46 am
by Lonsdaler
The weathered 'old' wheel looks so realistic. You should find a space for it to gradually moulder somewhere near the mill
![:)](./images/smilies/icon_smile.gif)
Re: A Quiet Sunday
Posted: Sat Feb 17, 2018 10:18 am
by Peter Butler
Wonderful work as ever Grant.... the old wheel has lasted well and looks so good it deserves a place of honour to preserve it.
Re: A Quiet Sunday
Posted: Thu Feb 22, 2018 2:09 am
by LNR

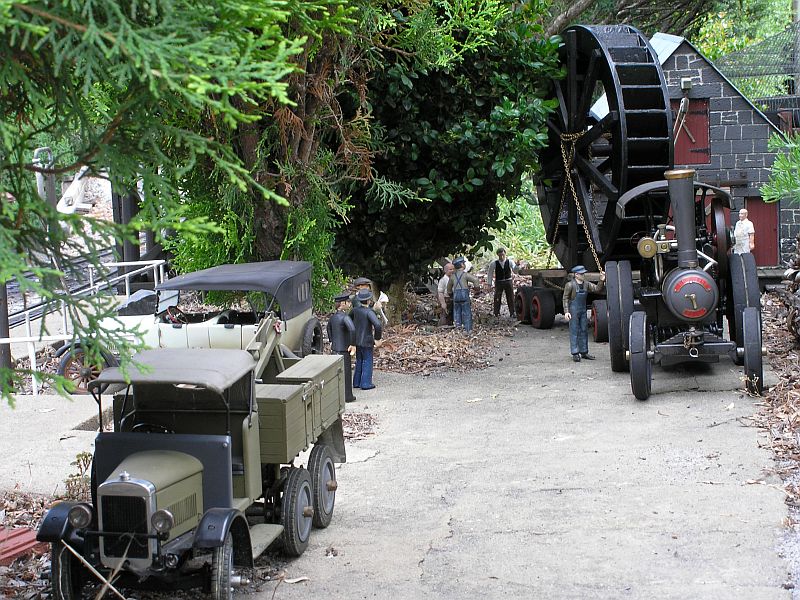

DELIVERY for Mr. D. HEALY.
Dan got his new Mill Wheel delivered this morning. It actually left the manufacturers three days ago, so spent some
time on the road with clearance problems etc.
![New Delivery 2.JPG](./download/file.php?id=2844&sid=4844bc459f184da8608fed6e2e4f0919)
- New Delivery 2.JPG (169.7 KiB) Viewed 8890 times
There were on-lookers, (not much happens in a small town, this was the weeks entertainment!) and all went
according to plan. Dan has quite a backlog to get through, and can't wait for the wheel to be rigged and running.
Grant.
Re: A Quiet Sunday
Posted: Thu Feb 22, 2018 7:51 am
by ge_rik
Another great looking tableau, Grant. Not only do you have a good eye for detail you seem to have a natural instinct for composition. Are they going to jury-rig some sort of derrick?
Rik
Re: A Quiet Sunday
Posted: Thu Feb 22, 2018 8:50 am
by LNR
Thanks Rik, I had in mind replacing the engine with the Thornycroft, running out the winch over the top of the wheel. Then with men climbing the paddles adding weight and paying out the winch, and so rolling the wheel into position.
Impatience got the better of me, I really miss the sound of the wheel.
Grant.
Re: A Quiet Sunday
Posted: Thu Feb 22, 2018 6:31 pm
by Peter Butler
That is a beautifully composed piece Grant..... lots of workmen and nothing happening, all standing around, scratching their heads and saying to each other.... 'OK, so it's arrived..... what do we do next?'
